Autel Smart Controller for EVO II Series Version 2

SKU
smart
$1,990.00
Overview

Autel Smart Controller for EVO 2 Series V2

Ultra-Bright 7.9" Retina Display

The Autel Smart Controller V2 is designed to be used with EVO II aircraft, and it provides high-definition real-time image transmission. With the complete function buttons of the remote control, it can control and set up the aircraft and camera up to 13km (8.08miles) communication distance. The remote controller has a built-in 7.9-inch 2048x1536 ultra-high-definition, ultra-bright screen with a maximum 2000nit brightness. It provides a clear image display under the strong sunlight. With built-in 128G memory, it’s convenient to store the video footage in time. The working time is about 3 hours when the built-in battery is fully charged and the screen is at maximum brightness.

*Compatible with the EVO II 8K V2 Drone, EVO II Pro 6K V2, EVO II Dual V2 and EVO II RTK V2 Series.

    • 2000nit super-bright screen

      Autel Smart Controller's built-in display is twice as bright as the next leading competitor and 4 screens. The 7.9-inch QHD display offers anti-glare coatings and provides easy visibility under direct sunlight.

      -20°C~40°Cworking temperature

      Bigger heatsinks allow the Smart Controller to operate with a wider temperature range- giving extreme environments without overheating or freezing.

      4.5h Ultra-long battery life

      The 5800mAh Lithium-ion battery lasts up to 4.5 hours in continuous use and supports 2-hour fast charging. The Smart Controller is ready to meet your demands in aerial operation for those long days out in the field.

      Customized Android System

      The Smart Controller runs on a customized Android system and supports additional third flexibility for third-party system work flow by allowing users to download additional third party apps and can allow users to create their own exclusive operating system.

      128GB Internal memory

      Ample internal storage allows more than enough space for media and flight logs without the need for external storage. Autel Smart Controller offers additional SD Card support for up to 1TB- more than enough for all your video and photo needs.

      8-core processor

      Samsung Exynos 88958-core processor endows the smart controller to play 4K /60fps H.264 and H.265 videos smoothly.

      Sleek and Portable

      The controller weighs in at 1150g and comes with removable joysticks and storage so it can be tucked into a carrying bag with ease. Premium Material, Rugged design. The back of the controller is made from reinforced composites and 3D laser engraved for improved ergonomics, grip, and durability.

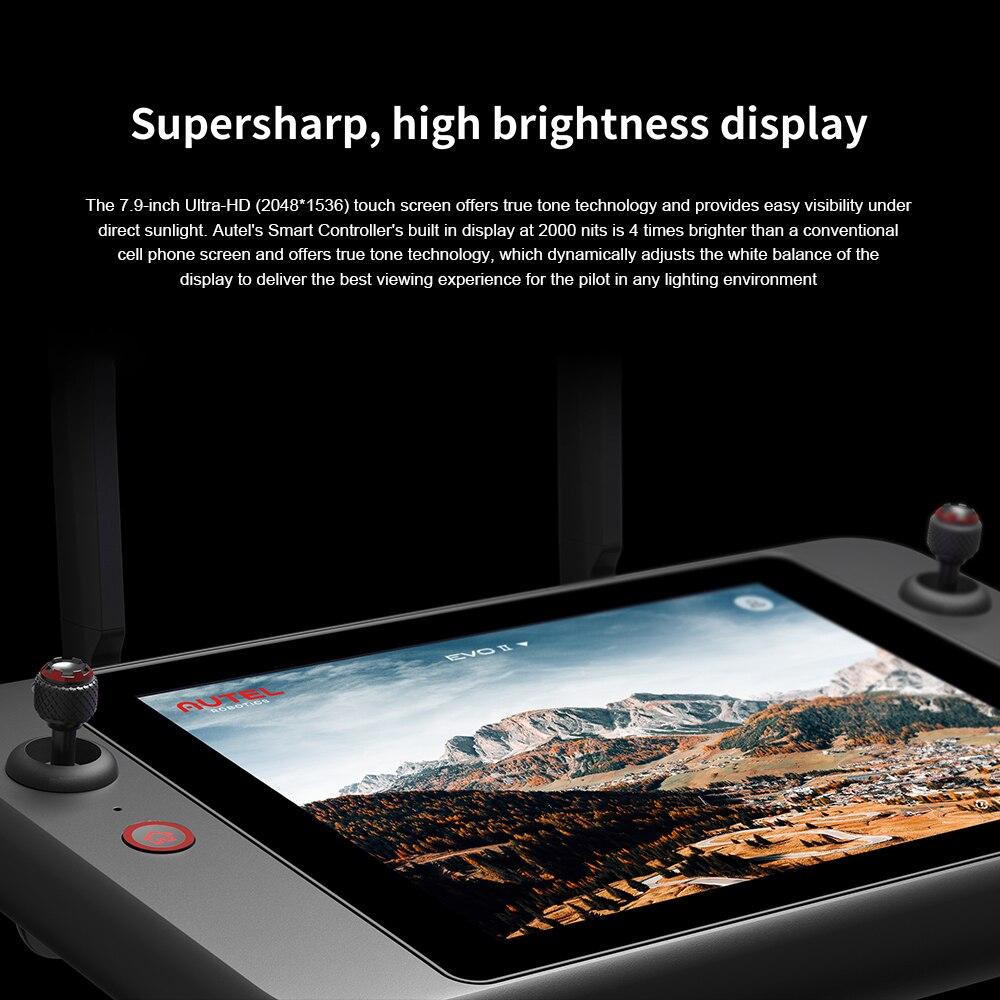

      Supersharp, high brightness display

      The 7.9-inch Ultra-HD 2048*1536 touch screen offers true tone technology and provides easy visibility under direct sunlight. Autel's Smart Controller's built-in display at 2000 nits is 4 times brighter than a conventional cell phone screen and offers truetone technology, which dynamically adjusts the white balance of the display to deliver the best viewing experience for the pilot in any lighting environment.

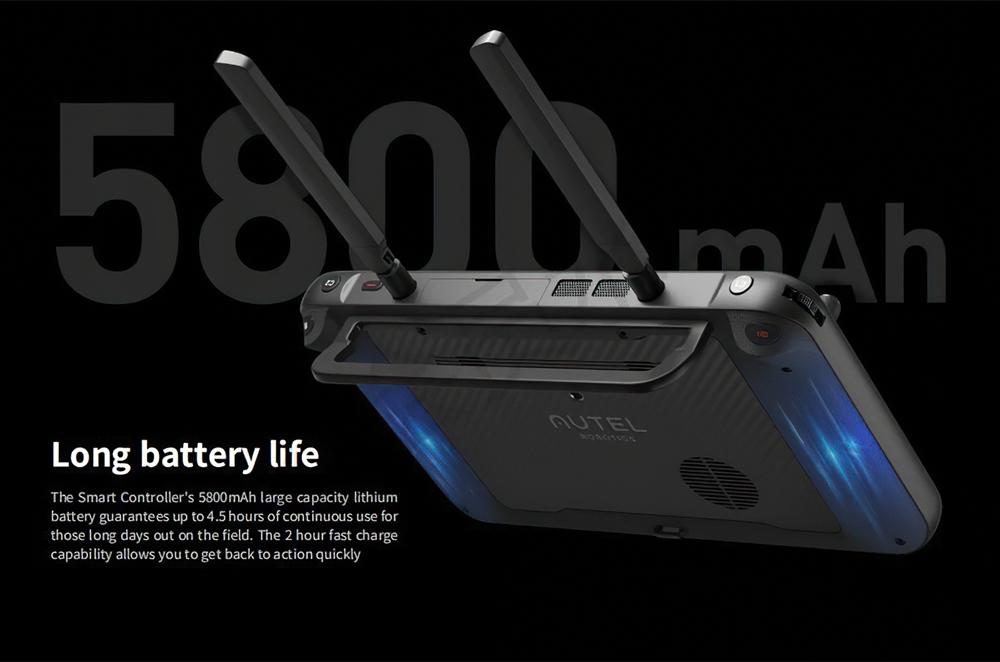

      Long battery life

      The Smart Controller's 5800mAh large capacity lithium battery guarantees up to 4.5hours of continuous use for those long days out on the field. The 2-hours fast charge capability allows you to get back to action quickly.

      Multi-port output

      HDMI, USB-A, and USB-C ports allow for live streaming with 4G/5G network modules. SMA connectors allow the antennas to be detachable and replaced or upgraded with SMA compatible third party devices.



  • Autel Smart Controller Specs.

    Image Transmission Max Signal Transmission Distance, (No interference, No obstacles)
    FCC:13 km
    CE/ MIC/ SRRC:7 km
    Wi-Fi Protocol: Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support2x2 MIMO Wi-Fi
    Working Frequency: 2.400- 2.4835GHz; 5.150-5.250GHz; 5.650 - 5.755GHz; 5.725-5.850 GHz; 9o2 -928MHz
    Battery Name: Intelligent Li-ion battery
    Capacity: 580OmAh
    Voltage: 11.55V
    Battery Type: Li-ion
    Battery Energy: 67 Wh
    Charging time: 120 min
    Operating Hours ~3h(Max Brightness)
    ~4.5h (50% Brightness)
    Internal Storage 128GB
    Video Output port HDMI Port
    USB-A Voltage/current 5V/2A
    Operating Environment Temp -20°C to40°C
    Storage temperature -20°C to 6o°C(within a month)
    -20°C to 45°C(between one to three months)
    -20°C to 23°C(one year)
    Charging Environment Temp 0°C to 4o°C
    *Supported Aircrafts EVO II V2 Series, EVOII RTK V2 Series, EVO II Enterprise V2
    Satellite Positioning Module GPS +GLONASS +Galileo
    Dimensions 303×190×87mm (with antenna folded)
    303×273×87mm (with antenna unfolded)
    Weight 1150g (without protection case)
    303×273×87mm (with antenna unfolded)

    NOTE: *The working frequency band varies according to different countries and models.

  • What's Included?

    • 7.9 Inch Smart Remote Controller V2
    • Remote Controller Protective Case
    • A/C adapter
    • USB Type-C Cable
    • Chest Strap
    • Spare joysticks
    • Documentation (Quick Start Guide)

.

Disclaimer:

Autel Smart Controller V2rders for products valued over $500 is subject to identification check prior to dispatch. We will contact you to request for a copy of your ID in order to release your order for dispatch.



N.B.:
- "Same Day Dispatch" guarantee is not available for this item
​- May not be available at our Product Showroom for purchases or Pick Ups

(17663)

Autel Smart Controller for EVO 2 Series V2

Ultra-Bright 7.9" Retina Display

The Autel Smart Controller V2 is designed to be used with EVO II aircraft, and it provides high-definition real-time image transmission. With the complete function buttons of the remote control, it can control and set up the aircraft and camera up to 13km (8.08miles) communication distance. The remote controller has a built-in 7.9-inch 2048x1536 ultra-high-definition, ultra-bright screen with a maximum 2000nit brightness. It provides a clear image display under the strong sunlight. With built-in 128G memory, it’s convenient to store the video footage in time. The working time is about 3 hours when the built-in battery is fully charged and the screen is at maximum brightness.

*Compatible with the EVO II 8K V2 Drone, EVO II Pro 6K V2, EVO II Dual V2 and EVO II RTK V2 Series.

    • 2000nit super-bright screen

      Autel Smart Controller's built-in display is twice as bright as the next leading competitor and 4 screens. The 7.9-inch QHD display offers anti-glare coatings and provides easy visibility under direct sunlight.

      -20°C~40°Cworking temperature

      Bigger heatsinks allow the Smart Controller to operate with a wider temperature range- giving extreme environments without overheating or freezing.

      4.5h Ultra-long battery life

      The 5800mAh Lithium-ion battery lasts up to 4.5 hours in continuous use and supports 2-hour fast charging. The Smart Controller is ready to meet your demands in aerial operation for those long days out in the field.

      Customized Android System

      The Smart Controller runs on a customized Android system and supports additional third flexibility for third-party system work flow by allowing users to download additional third party apps and can allow users to create their own exclusive operating system.

      128GB Internal memory

      Ample internal storage allows more than enough space for media and flight logs without the need for external storage. Autel Smart Controller offers additional SD Card support for up to 1TB- more than enough for all your video and photo needs.

      8-core processor

      Samsung Exynos 88958-core processor endows the smart controller to play 4K /60fps H.264 and H.265 videos smoothly.

      Sleek and Portable

      The controller weighs in at 1150g and comes with removable joysticks and storage so it can be tucked into a carrying bag with ease. Premium Material, Rugged design. The back of the controller is made from reinforced composites and 3D laser engraved for improved ergonomics, grip, and durability.

      Supersharp, high brightness display

      The 7.9-inch Ultra-HD 2048*1536 touch screen offers true tone technology and provides easy visibility under direct sunlight. Autel's Smart Controller's built-in display at 2000 nits is 4 times brighter than a conventional cell phone screen and offers truetone technology, which dynamically adjusts the white balance of the display to deliver the best viewing experience for the pilot in any lighting environment.

      Long battery life

      The Smart Controller's 5800mAh large capacity lithium battery guarantees up to 4.5hours of continuous use for those long days out on the field. The 2-hours fast charge capability allows you to get back to action quickly.

      Multi-port output

      HDMI, USB-A, and USB-C ports allow for live streaming with 4G/5G network modules. SMA connectors allow the antennas to be detachable and replaced or upgraded with SMA compatible third party devices.



  • Autel Smart Controller Specs.

    Image Transmission Max Signal Transmission Distance, (No interference, No obstacles)
    FCC:13 km
    CE/ MIC/ SRRC:7 km
    Wi-Fi Protocol: Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support2x2 MIMO Wi-Fi
    Working Frequency: 2.400- 2.4835GHz; 5.150-5.250GHz; 5.650 - 5.755GHz; 5.725-5.850 GHz; 9o2 -928MHz
    Battery Name: Intelligent Li-ion battery
    Capacity: 580OmAh
    Voltage: 11.55V
    Battery Type: Li-ion
    Battery Energy: 67 Wh
    Charging time: 120 min
    Operating Hours ~3h(Max Brightness)
    ~4.5h (50% Brightness)
    Internal Storage 128GB
    Video Output port HDMI Port
    USB-A Voltage/current 5V/2A
    Operating Environment Temp -20°C to40°C
    Storage temperature -20°C to 6o°C(within a month)
    -20°C to 45°C(between one to three months)
    -20°C to 23°C(one year)
    Charging Environment Temp 0°C to 4o°C
    *Supported Aircrafts EVO II V2 Series, EVOII RTK V2 Series, EVO II Enterprise V2
    Satellite Positioning Module GPS +GLONASS +Galileo
    Dimensions 303×190×87mm (with antenna folded)
    303×273×87mm (with antenna unfolded)
    Weight 1150g (without protection case)
    303×273×87mm (with antenna unfolded)

    NOTE: *The working frequency band varies according to different countries and models.

  • What's Included?

    • 7.9 Inch Smart Remote Controller V2
    • Remote Controller Protective Case
    • A/C adapter
    • USB Type-C Cable
    • Chest Strap
    • Spare joysticks
    • Documentation (Quick Start Guide)

Autel Smart Controller V2

.

Disclaimer:
Orders for products valued over $500 is subject to identification check prior to dispatch. We will contact you to request for a copy of your ID in order to release your order for dispatch.



N.B.:
- "Same Day Dispatch" guarantee is not available for this item
​- May not be available at our Product Showroom for purchases or Pick Ups
